Product Summary

The LIS33DE is an ultra compact low-power three axis linear accelerometer. It includes a sensing element and an IC interface able to provide the measured acceleration to the external world through I2C/SPI serial interface. The applications of the LIS33DE include Portrait - landascape image rotation in mobile phones and PDA, Motion activated user interfaces, Gaming, Motion triggered wake-up.

Parametrics

LIS33DE absolute maximum ratings: (1)Supply voltage: -0.3 to 6 V; (2)I/O pins supply voltage: -0.3 to 6 V; (3)Input voltage on any control pin (CS, SCL/SPC, SDA/SDI/SDO): -0.3 to Vdd_IO +0.3 V; (4)Acceleration (any axis, powered, Vdd=2.5V): 3000g for 0.5 ms, 10000g for 0.1 ms; (5)Operating temperature range: -40 to +85 ℃; (6)Storage temperature range: -40 to +125 ℃; (7)Electrostatic discharge protection: 0 - 2 (HBM) KV.

Features

LIS33DE features: (1)2.16 V to 3.6 V supply voltage; (2)1.8 V compatible IOs; (3)< 1 mW power consumption; (4)± 2g/± 8g dynamically selectable full-scale; (5)I2C/SPI digital output interface; (6)Programmable interrupt generator; (7)Embedded self test; (8)10000g high shock survivability.

Diagrams

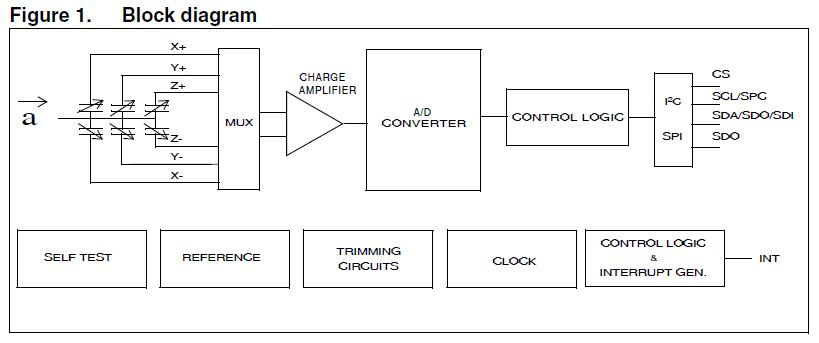

LIS33DE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LIS33DE
LIS33DE

STMicroelectronics

Board Mount Accelerometers MEMS MOTION SENS 3 AXIS 2G/8G SDO NANO

Data Sheet

0-1: $1.69
1-10: $1.64
10-100: $1.49
100-250: $1.45
LIS33DETR
LIS33DETR

STMicroelectronics

Board Mount Accelerometers DGTL OUTPT MTN SEN MEMS ULTRA LO PWR

Data Sheet

0-2890: $1.52
2890-4000: $1.46
