BAV99

DUAL, 100V, 215MA, SOT-23, High-speed double diode, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.02

PartNumber:: BAV99

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(Singapore)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-21

From Other Seller

Part Number:BAV99
US $0.02 - 0.02
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

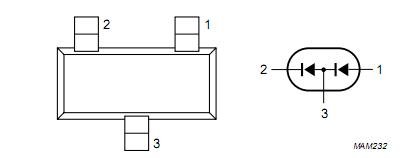

The BAV99 is a high-speed double diode. It consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package. The BAV99 can be used in high-speed switching in thick and thin-film circuits.

Parametrics

BAV99 absolute maxing ratings: (1)VRRM, repetitive peak reverse voltage: max=85V; (2)VR, continuous reverse voltage: max=75V; (3)On the condition of single diode loaded, IF continuous forward current: max=215mA; on the condition of double diode loaded, IF continuous forward current: max=125mA; (4)IFRM repetitive peak forward current: max=450mA; (5)On the conditions of square wave; Tj=25℃ prior to surge; t=1μs: max=4A; t=1ms: max=1A; t=1s: max=0.5A; (6)On the condition of Tamb=25℃, Ptot total power dissipation: max=250mW; (7)Tstg storage temperature: min=-65℃, max=+150℃; (8)Tj junction temperature: max=150℃.

Features

BAV99 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.
