Product Summary
The IRLR8729TRLPBF is a HEXFET Power MOSFET. The applications of the IRLR8729TRLPBF include High Frequency Synchronous Buck Converters for Computer Processor Power, High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use.
Parametrics
IRLR8729TRLPBF absolute maximum ratings: (1)Drain-to-Source Voltage: 30 V; (2)Gate-to-Source Voltage: 20 V; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 58 A; (4)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 41 A; (5)Pulsed Drain Current: 260 A; (6)PD @TC = 25℃ Maximum Power Dissipation: 55 W; (7)PD @TC = 100℃ Maximum Power Dissipation: 27 W; (8)Linear Derating Factor: 0.37 W/℃; (9)Operating Junction and Storage Temperature Range: -55 to +175 ℃.
Features
IRLR8729TRLPBF features: (1)Very Low RDS(on) at 4.5V VGS; (2)Ultra-Low Gate Impedance; (3)Fully Characterized Avalanche Voltage and Current; (4)Lead-Free; (5)RoHS compliant.

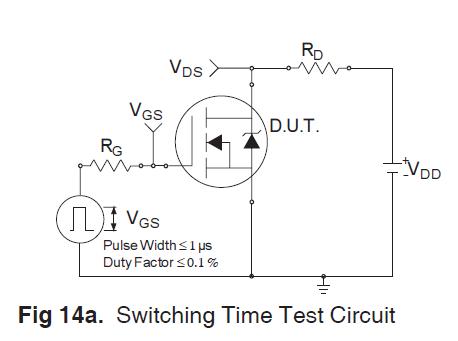

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRLR8729TRLPBF |
International Rectifier |
MOSFET MOSFT 58A 8.9mOhm 30V 10nC Qg log lvl |
Data Sheet |
|
|
||||||||||||
