ATMEGA88V-10MU

Product Summary

The ATMEGA88V-10MU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA88V-10MU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATMEGA88V-10MU is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.

Parametrics

ATMEGA88V-10MU absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (5)Maximum Operating Voltage:6.0V; (6)DC Current per I/O Pin:40.0 mA; (7)DC Current VCC and GND Pins:200.0 mA.

Features

ATMEGA88V-10MU features: (1)131 Powerful Instructions - Most Single Clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 20 MIPS Throughput at 20 MHz; (5)On-chip 2-cycle Multiplier; (6)4/8/16K Bytes of In-System Self-programmable Flash program memory; (7)256/512/512 Bytes EEPROM; (8)512/1K/1K Bytes Internal SRAM; (9)Write/Erase cyles: 10,000 Flash/100,000 EEPROM; (10)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (11)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (12)Real Time Counter with Separate Oscillator; (13)Six PWM Channels; (14)8-channel 10-bit ADC in TQFP and QFN/MLF package; (15)6-channel 10-bit ADC in PDIP Package; (16)Programmable Serial USART; (17)Master/Slave SPI Serial Interface; (18)Byte-oriented 2-wire Serial Interface (Philips I2C compatible); (19)Programmable Watchdog Timer with Separate On-chip Oscillator; (20)On-chip Analog Comparator; (21)Interrupt and Wake-up on Pin Change; (22)DebugWIRE On-Chip Debug System; (23)Power-on Reset and Programmable Brown-out Detection; (24)Internal Calibrated Oscillator; (25)External and Internal Interrupt Sources; (26)Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby.

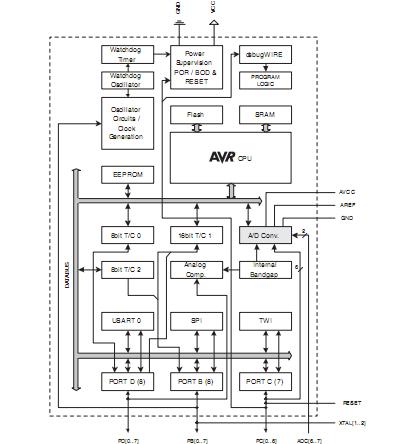

Diagrams
