AT27C010-70PU

read-only memory, 32DIP, -2.0V to +7.0V, Low-power CMOS operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.03~2.61 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.03~2.61

PartNumber:: AT27C010-70PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(Singapore)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-25

From Other Seller

Part Number:AT27C010-70PU
US $2.03 - 2.61
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

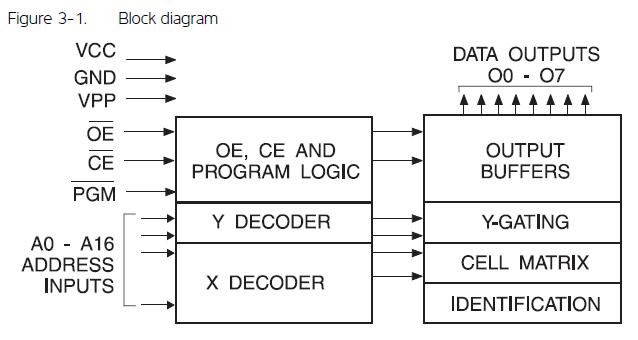

The Atmel AT27C010-70PU is a low-power, high-performance 1,048,576-bit, one-time programmable, read-only memory (OTP EPROM) organized as 128K by 8 bits. The AT27C010-70PU requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45ns, eliminating the need for speed reducing WAIT states on highperformance microprocessor systems.

Parametrics

AT27C010-70PU absolute maximum ratings: (1)Temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: -2.0V to +7.0V; (4)Voltage on A9 with respect to ground: -2.0V to +14.0V; (5)VPP supply voltage with respect to ground: -2.0V to +14.0V.

Features

AT27C010-70PU features: (1)Fast read access time: 45ns; (2)Low-power CMOS operation: 100μA max standby, 25mA max active at 5MHz; (3)JEDEC standard packages: 32-lead PDIP, 32-lead PLCC; (4)5V±10% supply; (5)High-reliability CMOS technology: 2000V ESD protection, 200mA latchup immunity; (6)Rapid programming algorithm: 100μs/byte (typical); (7)CMOS- and TTL-compatible inputs and outputs; (8)Integrated product identification code; (9)Industrial temperature range; (10)Green (Pb/halide-free) packaging option.
