Product Summary
The AMS1117-3.3 is a 1A low dropout voltage regulator. It is designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-3.3 is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. The applications of the AMS1117-3.3 are High Efficiency Linear Regulators, Post Regulators for Switching Supplies, 5V to 3.3V Linear Regulator, Battery Chargersl, Active SCSI Terminators, Power Management for Notebook, Battery Powered Instrumentation.
Parametrics
AMS1117-3.3 absolute maximum ratings: (1)Power Dissipation:Internally limited ; (2)Input Voltage:15V ; (3)Operating Junction Temperature: Control Section:0℃ to 125℃, Power Transistor:0℃ to 150℃; (4)Storage temperature:- 65℃ to +150℃; (5)Soldering information:Lead Temperature (25 sec):265℃.
Features

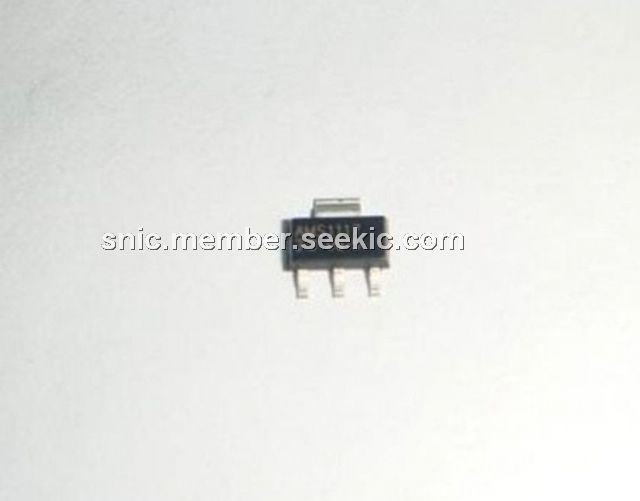

AMS1117-3.3 features: (1)Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V ; (2)Output Current of 1A ; (3)Operates Down to 1V Dropout ; (4)Line Regulation: 0.2% Max. ; (5)Load Regulation: 0.4% Max. ; (6)SOT-223, TO-252 and SO-8 package available.

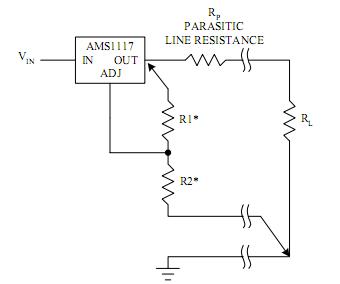

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AMS1117-3.3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
