Product Summary
The L7805CV is a three-terminal positive regulator, which is available in TO-220, TO-220FP, TO-3, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7805CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
Parametrics
L7805CV absolute maximum ratings: (1)DC input voltage: 35 V for VO= 5 to 18 V, 40 V for VO= 20, 24 V; (2)Output current: Internally limited; (3)Power dissipation: Internally limited; (4)Storage temperature range -65 to 150 ℃; (5)Operating junction temperature range: 0 to 125 ℃.
Features
L7805CV features: (1)Output current up to 1.5 A; (2)Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection; (6)2 % output voltage tolerance (A version); (7)Guaranteed in extended temperature range (A version).

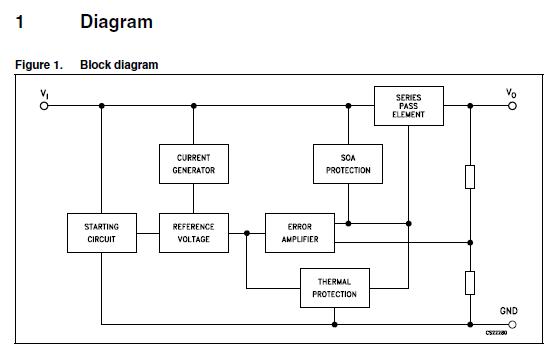

Diagrams
