Product Summary
The JRC4558D integrated circuit is a dual high-gain operational amplifier, which is internally compensated and constructed on a single silicon chip using an advanced epitaxial process.
Parametrics
JRC4558D absolute maximum ratings: (1)supply voltage: ±18 V; (2)differential input voltage: ±30 V; (3)input voltage: ±15 V; (4)power dissipation: 500 mW; (5)operating temperature range: -40 to +85 ℃; (6)storage temperature range: -40 to +125 ℃.
Features
JRC4558D features: (1)operating voltage: ±4 to ±18 V; (2)high voltage gain: 100dB typ; (3)high input resistance: 5 MΩ typ; (4)package outline: DIP8, DMP8, SIP8, SSOP8; (5)bipolar technology.

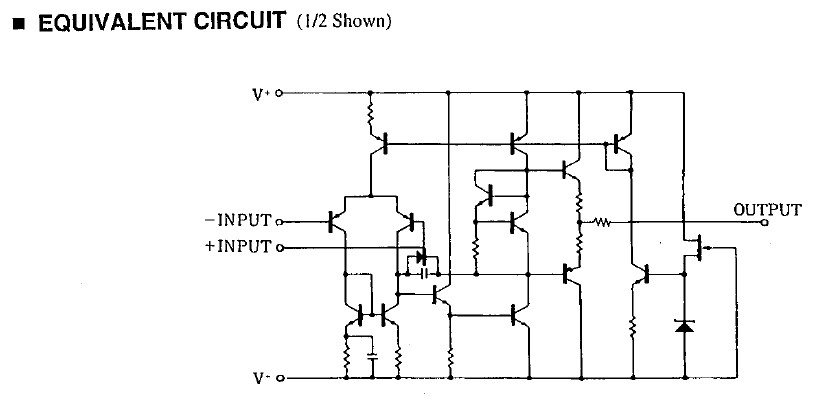

Diagrams
