Product Summary

The IRF8736TRPBF is a HEXFET Power MOSFET. The applications of the IRF8736TRPBF include Synchronous MOSFET for Notebook Processor Power, Synchronous Rectifier MOSFET for Isolated DC-DC Converters in Networking Systems.

Parametrics

IRF8736TRPBF absolute maximum ratings: (1)Drain-to-Source Voltage: 30 V; (2)Gate-to-Source Voltage: ±20 V; (3)ID @ TA = 25℃, Continuous Drain Current, VGS @ 10V: 18 A; (4)ID @ TA = 70℃, Continuous Drain Current, VGS @ 10V: 14.4 A; (5)Pulsed Drain Current: 144 A; (6)PD @TA = 25℃, Power Dissipation: 2.5 W; (7)PD @TA = 70℃, Power Dissipation: 1.6 W; (8)Linear Derating Factor: 0.02 W/℃; (9)Operating Junction and Storage Temperature Range: -55 to + 150 ℃.

Features

IRF8736TRPBF features: (1)Very Low RDS(on) at 4.5V VGS; (2)Low Gate Charge; (3)Fully Characterized Avalanche Voltage and Current; (4)100% Tested for RG; (5)Lead -Free.

Diagrams

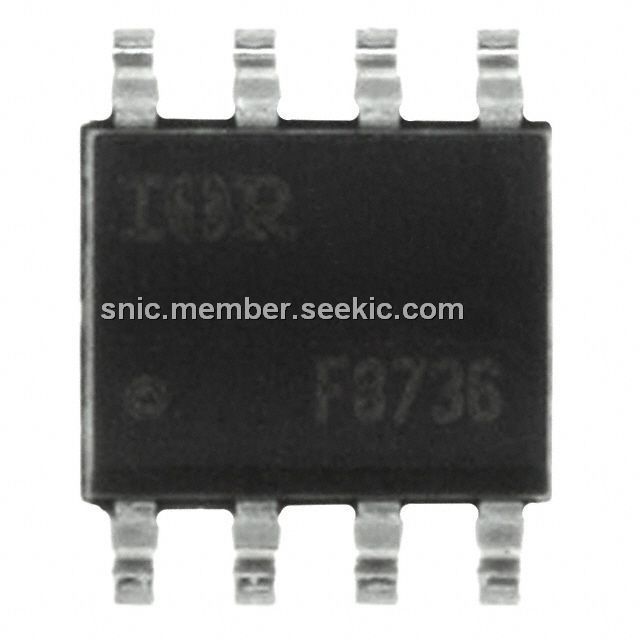

IRF8736TRPBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF8736TRPBF
IRF8736TRPBF
International Rectifier
MOSFET MOSFT 30V 18A 4.8mOhm 17nC Qg
Data Sheet
0-1: $0.77
1-25: $0.44
25-100: $0.28
100-250: $0.26
