Product Summary
The IP113A is a 10/100BASE-TX to 100BASE-FX converter. It consists of a 2-port switch controller, a fast Ethernet transceiver and a PHY for 100BASE-FX. The transceivers in IP113A are designed in DSP approach with advance 0.25-um technology; this results in high noise immunity and robust performance.
Parametrics
IP113A absolute maximum ratings: (1)Supply Voltage: –0.3V to Vcc+0.3V; (2)Input Voltage: –0.3V to Vcc+0.3V; (3)Output Voltage: –0.3V to Vcc+0.3V; (4)Storage Temperature: -55℃ to 125℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.
Features
IP113A features: (1)A 10/100BASE-TX/ 100BASE-FX converter; (2)Built in a 10/100BASE-TX transceiver; (3)Built in a PHY for 100BASE-FX; (4)Built in a 2-port switch: Pass all packets without address and CRC check (optional), Supports modified cut-through frame forwarding for low latency, Supports pure converter mode data forwarding for extreme low latency.

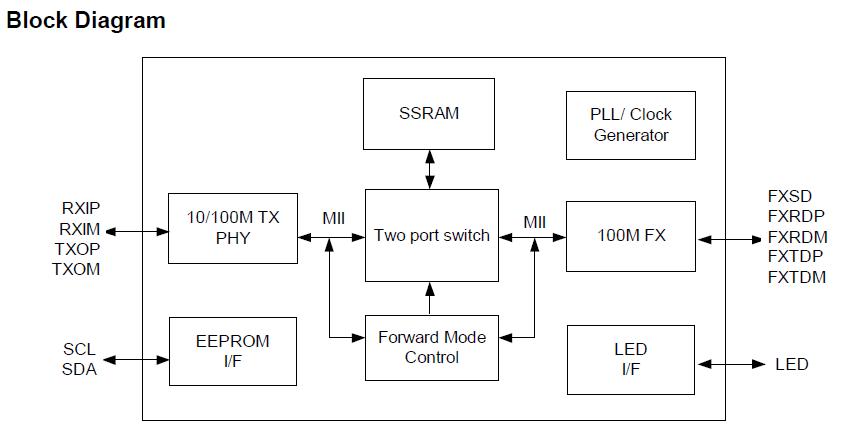

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IP113ALF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IP113A |
Other |
|
Data Sheet |
Negotiable |
|
||||
