Product Summary

The Atmel AT45DB081D-SSU is a 2.5V or 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB081D-SSU supports Atmel RapidS serial interface for applications requiring very high speed operations.

Parametrics

AT45DB081D-SSU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB081D-SSU features: (1)Single 2.5V or 2.7V to 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency: SPI Compatible Modes 0 and 3; (3)User Configurable Page Size: 256 Bytes per Page, 264 Bytes per Page, Page Size Can Be Factory Pre-configured for 256 Bytes; (4)Page Program Operation: Intelligent Programming Operation, 2,048 Pages (256/264 Bytes/Page) Main Memory; (5)Flexible Erase Options: Page Erase (256 Bytes), Block Erase (2 Kbytes), Sector Erase (64 Kbytes), Chip Erase (8 Mbits).

Diagrams

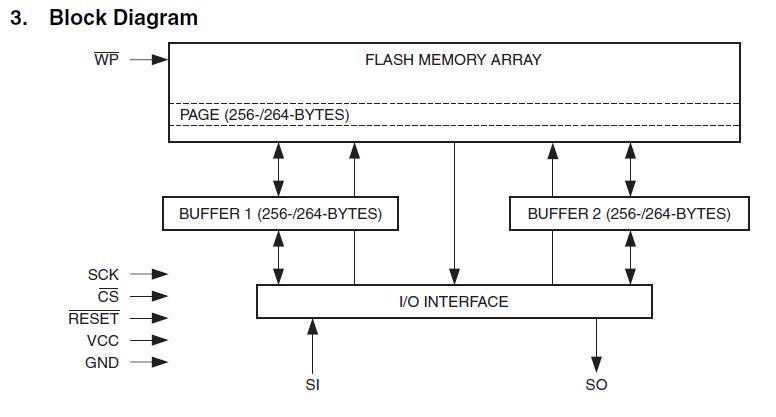

AT45DB081D-SSU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT45DB081D-SSU
AT45DB081D-SSU
Atmel
Flash 8MB SERIAL 2.5V - IND TEMP
Data Sheet
0-1: $0.69
1-10: $0.67
10-25: $0.62
25-100: $0.58
AT45DB081D-SSU-2.5
AT45DB081D-SSU-2.5
Atmel
Flash 8MB SERIAL 2.5V - IND TEMP
Data Sheet
0-1: $0.74
1-10: $0.71
10-25: $0.67
25-100: $0.62
