Product Summary
The TEA1751T is a green Switched Mode Power Supply (SMPS) controller IC. The TEA1751T combines a controller for Power Factor Correction (PFC) and a flyback controller. Its high level of integration allows the design of a cost-effective power supply with a very low number of external components.
Parametrics
TEA1751T absolute maximum ratings: (1)supply voltage: -0.4 to +38 V; (2)voltage on pin LATCH current limited: -0.4 to +5 V; (3)voltage on pin FBCTRL: -0.4 to +5 V; (4)voltage on pin PFCCOMP: -0.4 to +5 V; (5)voltage on pin VINSENSE: -0.4 to +5 V; (6)voltage on pin VOSENSE: -0.4 to +5 V; (7)voltage on pin PFCAUX: -25 to +25 V; (8)current on pin PFCDRIVER duty cycle < 10%: -0.8 to +2 A; (9)current on pin HV: 5 mA; (10)total power dissipation: 0.6 W; (11)storage temperature: -55 to +150 ℃; (12)junction temperature: -40 to +150 ℃.
Features
TEA1751T features: (1)Integrated PFC and flyback controller.; (2)Universal mains supply operation (70 V (AC) to 276 V (AC)); (3)Dual boost PFC with accurate maximum output voltage (NXP patented); (4)High level of integration, resulting in a very low external component count and a cost-effective design.

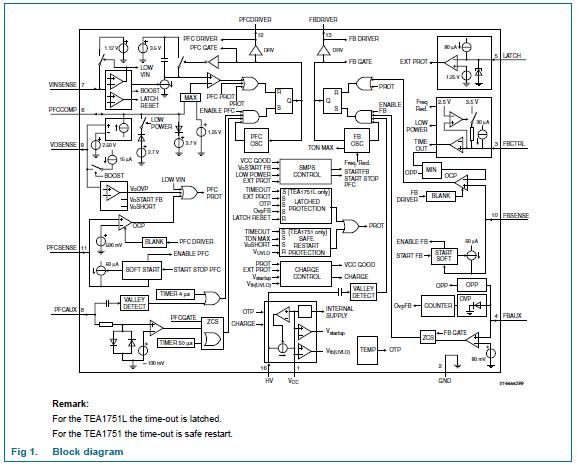

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TEA1751T/N1,518 |
NXP Semiconductors |
DC/DC Switching Controllers GRNCHIP III PRIMARY |
Data Sheet |
|
|
||||||||||||
